LIST OF THE FACTORY DRAWINGS RELATED TO THE BEDFORDS
N° | DESCRIPTION | DATE | Models concerned | ||||
25M 410 | 25V 252 | 25W 411 | 521 921 409 | 582 982 | |||
12835 | BEDFORD TRUCK ASSEMBLY | 27/8/ 1948 | x | ||||
12836 | BEDFORD –TRUCK BODY | 23/2/ 1948 | x | ||||
12839 | WINDOW FOR BEDFORD REFUSE WAGON ETC | 11/12/ 1959 | x | x | x | x | |
12840 | BEDFORD TIPPING WAGON ASSEMBLY | 15/1/ 1947 | x | ||||
12840 | BEDFORD TIPPING WAGON ASSEMBLY – SHEET 2 | 15/8/ 1947 | x | ||||
12841 | CAB & CHASSIS – TIPPING LORRY | 29/1/ 1947 | x | x | x | x | x |
12842 | BODY – TIPPING LORRY | 11/6/ 1947 | x | ||||
12843 | TAILBOARD – TIPPING LORRY | 5/2/ 1947 | x | ||||
12844 | RADIATOR | x | x | x | x | x | |
12845 | BASE BEDFORD | 6/2/ 1947 | x | x | x | x | x |
12846 | LIFTING SCREW ASSEMBLY | 22/7/ 1947 | x | x | |||
12847 | LIFTING SCREW BEDFORD TIPPING WAGON | 16/7/ 1947 | x | x | |||
12848 | BUSH BEDFORD TIPPING WAGON | 5/2/ 1947 | x | x | |||
12849 | CROWN WHEEL – TIPPING LORRY | 5/2/ 1947 | x | x | |||
12850 | BRACKET – TIPPING LORRY | 5/2/ 1947 | x | x | |||
12851 | PINION & HANDLE – TIPPING LORRY | 5/2/ 1947 | x | x | |||
12852 | NUT – TIPPING LORRY | 5/2/ 1947 | x | x |
12854 | LIFTING HANDLE – BEDFORD TIPPING WAGON & REFUSE COLLECTOR | 19/3/ 1963 | x | x | |||
12872 | BODY FOR BEDFORD ARTICULATED VEHICLE | x | |||||
12874 | PLATFORM FOR BEDFORD ARTICULATED VEHICLE | 5/9/ 1947 | x | x | |||
12876 | BEDFORD ARTICULATED VEHICLE | 29/9/ 1947 | x | ||||
12877 | BASE FOR BEDFORD SUPERTOYS | 6/2/ 1947 | x | x | |||
12970 | BEDFORD REFUSE COLLECTOR ASSEMBLY | 15/6/ 1948 | x | ||||
12971 | BEFORD REFUSE COLLECTOR – BODY | 9/12/ 47 | x | ||||
12972 | BODY FLOOR FOR REFUSE COLLECTOR | 18/12/ 47 | x | ||||
12973 | SLIDING DOOR FOR REFUSE COLLECTOR | 24/12/ 47 | x | ||||
12974 | REAR DOOR FOR BEDFORD REFUSE COLLECTOR | 26/1/ 1948 | x | ||||
12975 | REAR DOOR HINGE FOR BEDFORD REFUSE COLLECTOR | 8/1/ 1948 | x | ||||
12976 | TIPPING BRACKET FOR REFUSE COLLECTOR | 19/12/ 1947 | x | ||||
12977 | SUPPORT FOR DOORS – REFUSE COLLECTOR | 2/1/ 1948 | x | ||||
12978 | REAR DOOR ASSEMBLY BEDFORD REFUSE COLLECTOR | 17/6/ 1948 | x | ||||
13131 | BODY FOR STREAMLINED PETROL TANKER (ARTICULATED) | 19/5/ 1948 | |||||
13132 | BASE FOR ARTICULATED PETROL TANKER | 19/5/ 1948 | |||||
13792 | REAR RAMP FOR PULLMORE CAR TRANSPORTER (ALUMINIUM ALLOY) | 8/6/ 1951 | x | ||||
17716A & B | STEREOS FOR PULLMORE CAR TRANSPORTER (DINKY TOYS DELIVERY SERVICE) | 2/1/ 1953 | x |
Where are these drawings ?
I am the (proud) owner of the 14 original factory drawings highlightened in yellow on the previous table. All of them are small format drawings (about 23x30 cm). I bought 6 of them in 2012 from Mr Jos S. (NL) who had bought them form the Christies M&S Richardsons collection sale during the 90s, and 8 other at the beginning of 2016 from Mr Lee W. (GB) who bought them around 10 years earlier with a collection, those drawings also issued from M&S Richardsons collection.
The 13131 and 13132 drawings are in the Mr Jan Werner's (NL) collection, who wrote an article about the never produced BEDFORD tanker in MODEL COLLECTOR. He has built three very nice prototypes of this tanker.
The 12979 drawing is also in a collection in the Netherlands, remained unsold in an eBay auction in 2013. My offer was declined. It is also a drawing issued from M&S Richardson collection, as the apparent defaults and tears correspond exactly to the reproductions I had previously seen.
I am looking to buy original factory drawings.
Please contact me if you have any to sell !
DRAWING 12835 - BEDFORD TRUCK ASSEMBLY – 27/8/1948
QUOTED DRAWINGS
Drawing N° |
Description |
Remarks |
6675 |
WHEEL |
|
6676 |
TYRE |
Replaced 2/4/1958 by 20095 |
12187 |
HOOK |
|
12610 |
FRONT AXLE |
|
12614 |
REAR AXLE |
|
12771 |
FIXING PIN |
|
12836 |
BODY |
|
12841 |
CAB & CHASSIS |
|
12844 |
RADIATOR |
|
12845 |
BASE |
|
20095 |
TYRE |
Changed 2/4/1958 replacing 6676 |
CHANGES TABLE
ISSUE |
DESCRIPTION OF CHANGE |
CO. N° |
DATE |
1 |
|
|
27/8/1948 |
2 |
JOB N° 20095 WAS JOB N° 6676 |
5124 |
2/4/58 |

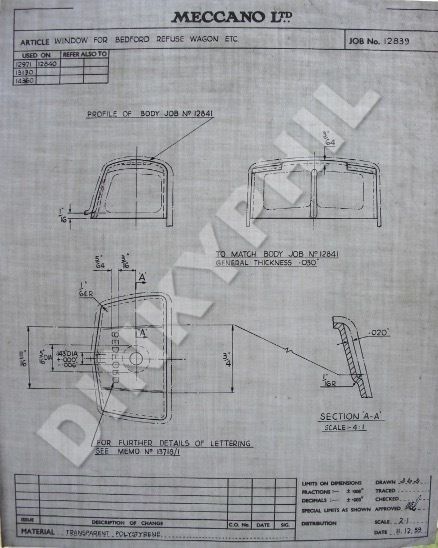

DRAWING 12839 – WINDOW FOR REFUSE WAGON ETC – 11/12/1959
QUOTED DRAWINGS
Drawing N° |
Description |
Remarks |
12840 |
BEDFORD TIPPING WAGON ASSEMBLY |
|
12841 |
CAB & CHASSIS – TIPPING LORRY |
|
12971 |
BEFORD REFUSE COLLECTOR – BODY |
|
13130 |
(DRAWING NOT IN THE LIST) |
I suppose it is the BEDFORD ARTICULATED LORRY ASSEMBLY |
14360 |
(DRAWING NOT IN THE LIST) |
I suppose it is the BEDFORD PULLMORE CAR TRANSPORTER ASSEMBLY |
CHANGES TABLE
ISSUE |
DESCRIPTION OF CHANGE |
CO. N° |
DATE |
1 |
|
|
11/12/1959 |
DRAWING 12840 - BEDFORD TIPPING WAGON - SHEET 1/2 - 22/7/1947
QUOTED DRAWINGS
N° Plan | Description | Remarques |
6675 | WHEEL | |
6676 | TYRE | Replaced 2/4/1958 by 20095 |
7635 | RIVET | Added 9/7/1956 Deleted 18/6/1958 |
12610 | FRONT AXLE | |
12614 | REAR AXLE | |
12774 | TIPPING PIN | Changed 11/9/1947 replacing 12884 |
12839 | WINDOWS | Added 13/1/1960 |
12841 | CAB & CHASSIS | |
12842 | BODY | |
12843 | TAILBOARD | |
12844 | RADIATOR | |
12845 | BASE | |
12846 | LIFTING SCREW ASSEMBLY | Deleted 27/3/1963 |
12851 | PINION & HANDLE – TIPPING LORRY | Deleted 27/3/1963 |
12852 | NUT – TIPPING LORRY | Deleted 27/3/1963 |
12853 | TAILBOARD PIN | |
12854 | LIFTING HANDLE | Added 27/3/1963 |
12884 | TIPPING PIN | Replaced 11/9/1947 by 12774 |
20095 | TYRE | Changed 2/4/1958 replacing 6676 |
CHANGES TABLE
ISSUE | DESCRIPTION OF CHANGE | CO. N° | DATE |
1 | 22/1/1947 | ||
2 | TIPPING PIN JOB 12774 WAS JOB 12884 | 2043 | 11/9/47 |
3 | RIVET JOB N° 7635 ADDED | 4626 | 9/7/56 |
4 | JOB N° 20095 WAS JOB N° 6676 | 5124 | 2/4/58 |
5 | RIVET JOB N° 7635 DELETED | 5174 | 18/6/58 |
6 | JOB N° 12839 ADDED | 5633 | 13/1/60 |
7 | JOB N° 12846,12851 & 12852 DELETED, JOB N°12854 ADDED | 6975 | 27/3/63 |

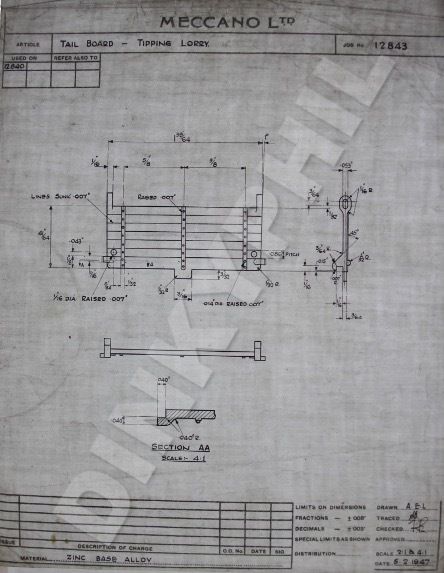

PLAN 12843 – TAIL BOARD - TIPPING WAGON – 5/2/1947
QUOTED DRAWINGS
N° Plan | Description | Remarques |
CHANGES TABLE
ISSUE | DESCRIPTION OF CHANGE | CO. N° | DATE |
1 | 5/2/1947 |

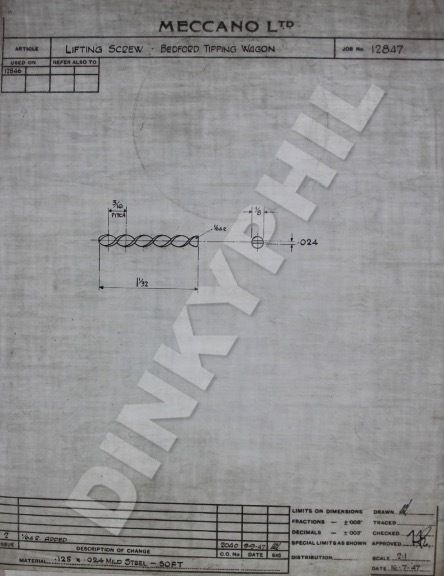

DRAWING 12847 – LIFTING SCREW - BEDFORD TIPPING WAGON – 16/7/1947
QUOTED DRAWINGS
N° Plan | Description | Remarques |
CHANGES TABLE
ISSUE | DESCRIPTION OF CHANGE | CO. N° | DATE |
1 | 16/7/1947 | ||
2 | 1/64 R ADDED | 2040 | 9/9/1947 |
DRAWING 12848 – BUSH - BEDFORD TIPPING WAGON – 16/7/1947
QUOTED DRAWINGS
Drawin N° | Description | Remarks |
CHANGES TABLE
ISSUE | DESCRIPTION OF CHANGE | CO. N° | DATE |
1 | 16/7/1947 | ||
2 | HOLE WAS .136“ DIA, N°29 DRILL | 2148 | 2/1/48 |
3 | DIMN. 3/32“ WAS 7/64“ | 2232 | 1/4/48 |
4 | OUTSIDE DIA WAS 11/64 | 2357 | 25/8/48 |
5 | .174/.171 DIA : WAS .109/.104 .125/.122 DIA : WAS .078/.075 DIM : /093/.090 WAS .053/.050 | 2464 | 10/12/48 |
6 | CHAMFER 1/32 x 45° ADDED | 2492 | 10/1/49 |
7 | DIM .140 WAS 9/64 | 2643 | 31/5/49 |
8 | DIMS .116 .112 “ & .086 .083“ WERE .125 .122“ & .093 .090“ RESP .165“ .163“ WAS .174“ .171“ | 2718 | 28/10/49 |
DRAWING 12849 – CROWN WHEEL - TIPPING LORRY – 5/2/1947
QUOTED DRAWINGS
Drawing N° | Description | Remarks |
CHANGES TABLE
ISSUE | DESCRIPTION OF CHANGE | CO. N° | DATE |
1 | 5/2/1947 | ||
2 | WIDTH OF MATERIAL ADDED | 16/9/47 | |
3 | HOB N° & DIA ; BEFORE FORMING ADDED | 2153 | 6/1/48 |
4 | HOLE WAS .083/.080 DIA : x.053/.050 A/F | 2464 | 10/12/48 |
5 | FINISH ADDED | 3224 | 8/10/51 |
6 | MATL WAS SOFT BS SPEC ADDED | 4307 | 4/5/55 |
DRAWING 12850 – BRACKET - TIPPING LORRY – 5/2/1947
QUOTED DRAWINGS
Drawing N° | Description | Remarks |
CHANGES TABLE
ISSUE | DESCRIPTION OF CHANGE | CO. N° | DATE |
1 | 5/2/1947 | ||
2 | WIDTH OF MATERIAL ADDED | 16/9/47 | |
3 | HOLE .175/.172 DIA : WAS .165/.162 | 2146 | 31/12/47 |
4 | HOLE .179/.176 DIA : WAS .113/.110 | 2464 | 10/12/48 |
5 | FINISH ADDED | 3224 | 8/10/51 |
6 | MATL WAS .032 x 1 1/8 STEEL FORMING QUALITY | 4564 | 27/4/56 |
DRAWING 12852 – NUT - TIPPING LORRY – 5/2/1947
QUOTED DRAWINGS
Drawing N° | Description | Remarks |
CHANGES TABLE
ISSUE | DESCRIPTION OF CHANGE | CO. N° | DATE |
1 | 5/2/47 | ||
2 | WIDTH OF MATERIAL ADDED | 16/9/47 | |
3 | HALF HARD ADDED TO MATERIAL FINISH ADDED | 18/12/47 | |
4 | SHAPE OF HOLE FOR SCREW ALTERED | 2146 | 31/12/47 |
5 | .140 DIA HOLE WAS .134/.130 DIA | 5384 | 4/3/59 |
DRAWING 12876 - BEDFORD ARTICULATED VEHICLE ASSEMBLY – 29/9/1947
QUOTED DRAWINGS
Drawing N° | Description | Remarks |
6675 | WHEEL | |
6676 | TYRE | Replaced 2/4/1958 by 20095 |
10253 | TYRE | Replaced 6/1/1956 by 15636 |
12169 | DISHED WASHER | |
12187 | HOOK | |
12610 | FRONT AXLE | |
12614 | REAR AXLE | |
12636 | WHEEL | |
12774 | PLATFORM PIN | |
12839 | WINDOWS | Added 14/1/1960 |
12841 | CAB & CHASSIS | |
12844 | RADIATOR | |
12845 | BASE | Changed 14/1/1953 replacing 12877 |
12872 | BODY | |
12874 | PLATFORM | |
12877 | BASE | Replaced 14/1/1953 by 12845 |
12934 | WASHER | |
15636 | TYRE | Changed 6/1/1956 replacing 10253 |
15966 | Deleted 3/7/1957 | |
20095 | TYRE |
CHANGES TABLE
ISSUE | DESCRIPTION OF CHANGE | CO. N° | DATE |
1 | illisible | ||
2 | COLOR DETAILS ADDED | - | 19/2/48 |
3 | SECTION A/A’ REMOVED NOTE RG. HOARDING OF AXLES ADDED | 2261 | 19/6/49 |
4 | MASK SPRAYING DELETED FROM PLATFORM MUDGUARDS | 2420 | 29/10/48 |
5 | JOB 12630 WAS JOB 6675 & JOB 12946 WAS JOB 12654 | 2908 | 13/3/50 |
6 | BASE WAS JOB 12877 | 3579 | 14/1/53 |
7 | MASK SPRAYING ON REAR MUDGARD DELETED | 3582 | 20/1/53 |
8 | WASHER WAS JOB 7046 | 4251 | 8/3/55 |
9 | TYRES ON TRAILER WERE JOB N° 10253 | 4479 | 6/1/56 |
10 | MEMO 15966 DELETED | 4920 | 3/7/57 |
11 | JOB N° 20095 WAS JOB N° 6676 | 5124 | 2/4/58 |
12 | JOB N° 12839 ADDED | 5633 | 14/1/60 |
DRAWING 12970 - BEDFORD REFUSE COLLECTOR ASSEMBLY – 15/6/1948
QUOTED DRAWINGS
Drawing N° | Description | Remarks |
6675 | WHEEL | Replaced 8/11/1961 by 60000 |
6676 | TYRE | Replaced 2/4/1958 by 20095 |
12608 | FRONT AXLE | Changed 8/11/61 replacing 12610 |
12610 | FRONT AXLE | Replaced 8/11/61 by 12608 |
12612 | REAR AXLE | Changed 8/11/61 replacing 12614 |
12614 | REAR AXLE | Replaced 8/11/61 by 12612 |
12771 | TIPPING PIN | |
12839 | WINDOWS | Added 13/1/1960 |
12841 | CAB & CHASSIS | |
12844 | RADIATOR | |
12845 | BASE | |
12854 | LIFTING HANDLE | Added 27/3/1963 |
12971 | BODY | |
12972 | FLOOR | |
12973 | SLIDING DOOR | |
12976 | TIPPING BRACKET | |
12977 | SLIDING DOOR SUPPORT | |
12978 | REAR DOOR ASSEMBLY | |
20095 | TYRE | Changed 2/4/1958 replacing 6676 |
12884 | TIPPING PIN | Replaced 11/9/1947 by 12774 |
60000 | WHEEL | Changed 8/11/1961 replacing 6675 |
CHANGES TABLE
ISSUE | DESCRIPTION OF CHANGE | CO. N° | DATE |
1 | 15/6/1948 | ||
2 | JOB N° 20095 WAS JOB N° 6676 | 5124 | 2/4/58 |
3 | JOB N° 12839 ADDED | 5633 | 13/1/60 |
4 | JOB N° 60000, 12608, 12612 WERE JOB N° 6675, 12610, 12614 | 6446 | 8/11/61 |
5 | JOB N° 12846 & 12851 DELETED, JOB N°12854 ADDED | 6975 | 27/3/63 |
DRAWING 12972 – BODY FLOOR FOR REFUSE COLLECTOR – 18/12/1947
QUOTED DRAWINGS
Drawing N° | Description | Remarks |
12970 | BEDFORD REFUSE COLLECTOR ASSEMBLY | |
12971 | BODY | |
12976 | TIPPING BRACKET |
CHANGES TABLE
ISSUE | DESCRIPTION OF CHANGE | CO. N° | DATE |
1 | 18/12/47 | ||
2 | WIDTH OF MATERIAL 1 7/8 WAS 1 3/4 | 3829 | 30/12/53 |
3 | VPN 120-140–BS 1449 EN2 ADDED | 4033 | 19/8/54 |
4 | FINISH, DELETED. COATED GLOSSY BLACK BOTH SIDES, ADDED | 5185 | 16/9/58 |
DRAWING 12973 – SLIDING DOOR FOR REFUSE COLLECTOR – 24/12/1947
QUOTED DRAWINGS
Drawing N° | Description | Remarks |
12970 | BEDFORD REFUSE COLLECTOR ASSEMBLY | |
12971 | BEFORD REFUSE COLLECTOR – BODY |
CHANGES TABLE
ISSUE | DESCRIPTION OF CHANGE | CO. N° | DATE |
1 | 24/12/47 | ||
2 | FORM. 1/16 x 1/32 ADDED | 2387 | 16/9/48 |
3 | DIM .750 WAS .787 | 2392 | 22/9/48 |
4 | FINISH ADDED. | 3224 | 30/10/51 |
5 | FINISH WAS BRUNOFIX. | 3830 | 31/12/53 |
6 | MATL. WAS MILD STEEL. | 6636 | 30/4/62 |
7 | MATL. WAS POLYSTYRENE SHEET | 7075 | 11/6/63 |
DRAWING 12974 – REAR DOOR FOR BEDFORD REFUSE COLLECTOR - 26/1/1948
QUOTED DRAWINGS
Drawing N° | Description | Remarks |
12978 | REAR DOOR ASSEMBLY |
CHANGES TABLE
ISSUE | DESCRIPTION OF CHANGE | CO. N° | DATE |
1 | 26/1/1948 | ||
2 | HINGE STRENGTHENED AT BACK OF DOOR | 2335 | 22/7/48 |
DRAWING 12975 – REAR DOOR HINGE FOR BEDFORD REFUSE COLLECTOR - 8/1/1948
QUOTED DRAWINGS
Drawing N° | Description | Remarks |
12970 | BEDFORD REFUSE COLLECTOR ASSEMBLY | |
12971 | BODY | |
12972 | FLOOR | |
12974 | REAR DOOR FOR BEDFORD REFUSE COLLECTOR |
CHANGES TABLE
ISSUE | DESCRIPTION OF CHANGE | CO. N° | DATE |
1 | 8/1/1948 | ||
2 | ”TINNED” ADDED | 9/9/48 | |
3 | DIA 11/64” WAS 9/64” | 2386 | 16/9/48 |
DRAWING 12976 – TIPPING BRACKET FOR REFUSE COLLECTOR – 19/12/1947
QUOTED DRAWINGS
Drawing N° | Description | Remarks |
CHANGES TABLE
ISSUE | DESCRIPTION OF CHANGE | CO. N° | DATE |
1 | 19/12/47 | ||
2 | 1/8 DIA PILOT HOLE ADDED 1/8 OFF CENTRE | -“- | 14/6/48 |
3 | 1/16 DIMENSION ADDED TO PILOT HOLE | -“- | 17/6/48 |
4 | MATERIAL WAS SOFT | 4048 | 31/8/54 |
DRAWING 12977 – SUPPORT FOR DOORS - REFUSE COLLECTOR – 2/1/1948 (PBT)
QUOTED DRAWINGS
Drawing N° | Description | Remarks |
12970 | BEDFORD REFUSE COLLECTOR ASSEMBLY |
CHANGES TABLE
ISSUE | DESCRIPTION OF CHANGE | CO. N° | DATE |
1 | 2/1/48 | ||
2 | MATL. WAS 2 5/16 WIDE MATL. WAS FORMING QUALITY. BS.. SPEC ADDED | 4307 | 4/5/55 |
DRAWING 12978 – REAR DOOR ASSEMBLY - BEDFORD REFUSE COLLECTOR – 17/6/1948
QUOTED DRAWINGS
Drawing N° | Description | Remarks |
12970 | BEDFORD REFUSE COLLECTOR ASSEMBLY | |
12974 | REAR DOOR | |
12975 | REAR DOOR HINGE |
CHANGES TABLE
ISSUE | DESCRIPTION OF CHANGE | CO. N° | DATE |
1 | 17/6/48 |
I never saw any drawing of the PULLMORE car transporter. The above drawings list (established using the data of M&S Richardsons book) doesn't quote all the drawings related to this model. You can notice that the drawings of the both main parts of the trailer and the assembly drawing are missing from this list. The prototype of the trailer fetched £179 at a Bonhams auction on november 23rd, 2004 (lot 429). The trailer produced by TEKNO being very close to DINKY TOYS trailer, is it possible that the drawings were sold to TEKNO ?
The 14 drawings I could buy in 2012 and 2016 helped me for the
What you can notice on the drawings :
The MADE IN ENGLAND lettering added under the chassis in january 1953.
The deleting of the black paint on the rear mudguards of the articulated truck in january 1953.
The removing of the "20" decal on the articulated truck in july 1957.
The replacement of smooth tyres by treaded tyres in april 1958.
The adding of glazing : the glazings drawing (12839) was designed in december 1959, and the assembly drawings were changed in january 1960. The glazing was not added on the 25W truck. The glazings drawings quotes two drawings references missing in the list. I suppose that these are the assembly drawings of the articulated truck and of the car transporter.
The replacement of the ridged hubs by plastic hubs on the refuse wagon in november 1961.
A "20" decal was planned to be applied on the tailgate of the 25M tipper (circle on the 12843 drawing) but this never came into production
The changes of the bush at the base of the spiral of the lifting mechanism (changes of the drawing dated 25/8/48 and 10/1/49, concerning the very fits unicolor versions of the tipper and the very first refuse wagons). All the other models have been fitted with a big diameter and chamfer bush.
The stengthening of the refuse wagon tailgate hinge. I never saw the previous version on any model. According to the date of the change, this change could have occurred before the beginning of the production.
The change of the thickness of the base and articulation part of the refuse collector. This change is unnoticeable on the models.
What you can not notice on the drawings :
The two different versions of the chassis moulding
The modification of the front axle support binding to the wheel arch
The change of the tank moulding
The replacement of the ridged hubs by plastic hubs on the tipper
Something odd noticed on the 12977 drawing : the inner part holding the sliding doors of the refuse wagon seems to have been chromed steel during all the production, but the drawing bears : FINISH : BARREL BLACK
Compilations sources :
THE GREAT BOOK OF DINKY TOYS, M&S Richardson, New Cavendish Books, London, 2000, ISBN 1 872727 83 2
DINKY TOYS factory drawings
No comments:
Post a Comment
